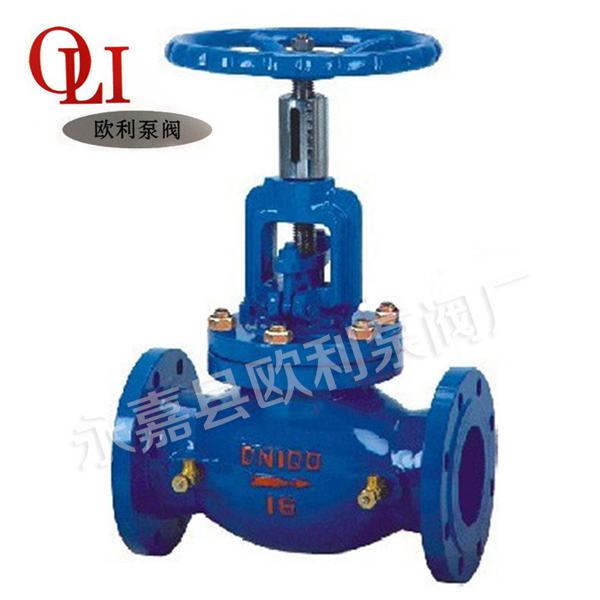

Balancing valve is a valve with a special function, it has good flow characteristics can distribute the traffic flow, the realization of quantitative, can effectively solve the heating (air conditioning) system at room temperature in the presence of uneven cold and hot issues. Because the opening instructions, opening and locking device forsmall valve pressure flow measurement with the valve, so as long as the proper specification in each branch and the user entrance installed on the balance valve,and one-time debugging with intelligent instruments specially after the lock, the total amount of water system can be controlled in a reasonable range, thus to overcomethe "high flow, unreasonable phenomenon of small temperature difference". This product is an ideal product for the heating system of the medium, the highesttemperature is 100 DEG C.
Part name valve body, valve cover, valve stem seal ring, a filler pressing sleeve valve stem nut washer packing
Stainless steel material of gray iron cast copper asbestos rubber plate of expanded graphite
Two, the material of main parts
Three, the main technical parameters
Nominal pressure
(MPa) the test pressure (MPa) working pressure (MPa) applicable temperaturesuitable medium
Seal P20 P12 shell
1.6 2.4 1.76 1.5 1.6 is less than or equal to 100 DEG C water, oil and other non corrosive liquid
Four, the main connection dimensions
Nominal diameter (mm) size (mm)
L H H1 D0
1513015016080
2015016017080
2516018219780
3218019220790
40200250270100
50230264284120
65290380410200
80310413448200
100350446506240
125400540595240
150480623688360
200495687762400
250622782867500
3006989141009500
3507879681073680
40091410371152680
50097814401440 -
600129517901790 -
